100% High Quality of Air Pressure Reducing Valves Manufacturers in Ahmedabad
We are the leading Air Pressure Reducing Valve manufacturer & supplier in India. Also, we are exporter PRV in many countries like Algeria, Singapore, Egypt, Kenya, Tanzania, Zambia, South Arabia, UAE, Oman & Bahrain. This offer model Pressure Reducing Valves for various applications like Steam, Air, Oil, Gas & Water etc. Air Pressure Reducing Valves are available in a wide variety of styles including many that are common to other types of valves, Such as Ball Valve, Gate Valve, Butterfly Valve, Globe Valve, Lined Valve, Check Valves, Motorized Damper Valve, Safety Valves, Electric Actuator, Pneumatic Actuator Valve, and Control Valve.
A design to maintain in the pipe works a reduced outlet pressure, which is noticeably constant in flow and flow rate. The valve automation has large experience guarantee comfort along with security valves. They can used of large model pressure reducing valves provides increased sensitivity for lower pressure ranges in the extra specialized valve model. These valves decrease the pressure of the water that go through it, and is use to obtain a regulated and constant value at its outlet.
What Is an Air Pressure Reducing Valve?
An air pressure reducing valve or air regulator is a device that is designed to automatically adjust a high inlet pressure to a lower constant output pressure. It avoids the destruction of pneumatic tools, pipelines, and machinery by regulating pressure fluctuations.
It ensures:
- Stable air supply
- Reduced energy consumption
- Enhanced equipment life
- Industrial safety.

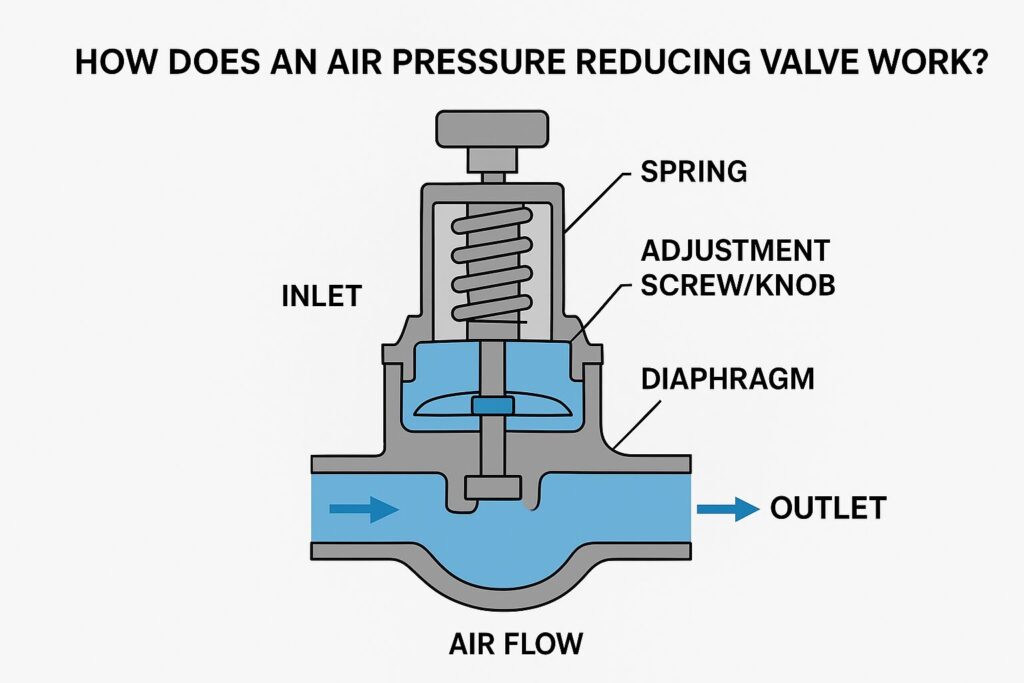

How the Air Pressure Reducing Valve Works?
The valve operates on a mechanism of a spring-loaded diaphragm.
Here’s a simple process flow:
- The compressed air leads to high-pressure air flowing through the valve.
- The downstream pressure is felt by the internal diaphragm.
- The valve automatically opens and closes the valve to keep the set pressure.
- The equipment receives constant and regulated air pressure.
The valve has a constant outlet pressure in spite of whether the inlet pressure is high or low.
Key Features
- Accuracy in controlling downstream pressure.
- Small and sturdy construction that fits in the industrial space.
- Wear and corrosion-resistant alloys such as brass, stainless steel, or cast iron.
- Its maintenance is low with a long service life.
- Automatic Self-adjustment to the changing pressures of the inlet
- Expansive pressure range suitability in a range of pneumatic applications.
Key Advantages
- defends against the overpressure of pneumatic machinery.
- Enhances energy efficiency through streamlining air movement.
- Guarantees smooth and constant functioning.
- Minimizes maintenance and repair expenses.
- Increases the life expectancy of compressors and air tools.
- Delivers quality pressure control under challenging environments.
Technical Specification of Air Pressure Reducing Valve
| Product Type | Air Pressure Reducing Valve |
| Function | Supports the constant downstream pressure disregarding fluctuations of inlet pressure |
| Body Material | Brass / Stainless Steel / Aluminium / Cast Iron (according to the application) |
| Ports Size | 1/4 to 2inch BSP /NPT/ Flanged |
| Pressure Range | (Inlet) 0.5- 16 bar (7 to 232 psi) |
| Set range Pressure | 0.5 8 bar ( variable ) |
| Max Operating Pressure | Up to 16bar (232 psi) |
| Type of Work | Compressed Air, Non-flammable gases |
| Temperature Range | -10 o C to 80 o C (14 o F to 176 o F) |
| Flow Rate | Dependent on size (e.g, 1 ions 3000 L/min) |
| Valve Type | Piston/ Diaphragm operated |
| End Connection | Threaded / Flanged / Compression fittings |
| Precision Less than or equal | 0.1 bar (variates with model) |
| Mode of control | Manual (regulable knob) / Pneumatic (remote signal) |
| Material of Seats | NBR / EPDM / PTFE (chemically compatible) |
| Orientation Set | Mounting Vertical/ Horizontal (as recommended by manufacturer) |
| Standards and Compliance | ISO 6952, CE, RoHS, ASME |
Types of Air PRV
Direct-Acting Air PRV
Minimal, small, and affordable. Applicable in the low flow to medium applications. Rapid adaptation to pressure changes. Small pneumatic system, tool, and equipment.
Pilot Operated Air PRV
High flow and high-pressure design. Very precise and reliable pressure regulation. Applied in industrial applications with a vital need for a steady downstream pressure. Suits air compressors, air distribution lines and heavy pneumatic machines.
Regulable Air PRV
Outlet pressure can be set manually. Elastic to processes that have varying pressure requirements. Popular in the workshops, assembly lines, and mixed pneumatic systems.
High-Pressure Air PRV
Determinedly made to fit systems of high inlet pressure. Appropriate for strenuous compressed air systems. Applied in fabrication factories, automation, and in high-pressure air pipes.
Compact Air Pressure Regulator / Mini PRV
Lightweight, small, and not cumbersome. Mostly applied in hand tools and mobile pneumatics. Space-saving and ideal in space-constrained installations.
Filter-Regulator (FR) Type Air PRV
Integrates a filtration system and pressure reduction. Eliminates the moisture and contaminants prior to the pressure control. Perfect in air compressors, paint booths, packaging machines, and automation lines.
Accurate Air PRV
Very fine pressure control. Applied to delicate pneumatic tools. Ideal for the measurement of instruments, laboratories, and testing apparatus.
Uses of Air Pressure Reducing Valves
- Manufacturing plants
- Automotive & assembly lines
- Food processing & packaging
- Pharmaceutical machinery
- Pneumatic systems and automation tools.
- HVAC systems
- Textile industries
- Oil & gas industries
They are used to control air pressure in machines like:
- Air compressors
- Pneumatic cylinders
- Spray guns
- Air filtration systems
